Scissor Lift Hand Pallet Truck With Extra Long Front Legs 1670mm Turning Radius

Name: Scissor Lift Hand Pallet Truck With Extra Long Front Legs 1670mm Turning Radius
Brand: REACH
Price: 1 USD

Brand Name : REACH

Model Number : JF7

Certification : CE, TUV

Place of Origin : Zhejiang, China

MOQ : 6 sets

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 40000 sets per month

Delivery Time : 25 - 30 days

Packaging Details : 6sets/pallet, 144 / 180sets for a 20ft container

Capacity : 1000kg

Lowered fork height : 85mm

Max. lifting height : 800mm

Steering wheel : 180*50mm

Fork wheel : 74*50mm

Fork length : 1220mm

Turning radius : 1670mm

Service weight : 104-115kg

Contact Now

High scissor lift hand pallet truck with extra long front legs

Quick Details

Model: High scissor lift hand pallet truck JF7

Capacity: 1000kg

Lowered fork height: 85mm

Max. lift height: 800mm

Fork length: 1220mm

Steering wheel: Φ180*50mm

Fork wheel: Φ74*50mm

Turning radius: 1670mm

Service weight: 104-115kg

Advantages:

The high lift hand pallet truck offers the users an efficient and versatile tool for material handling.
Improved safety: Automatic activation of self adjusting stabilizers when lifting loads higher than 400mm for maximum stability.
Great stability: Extra long front legs increase the stability when handling unevenly loaded pallets.
Quick-lift operation: Quick-lift function doubles the lifting speed when lifting loads less than 250kg.
Easy maneuvering of loads throughout work place.
Easy placing of load to correct ergonomic work height.

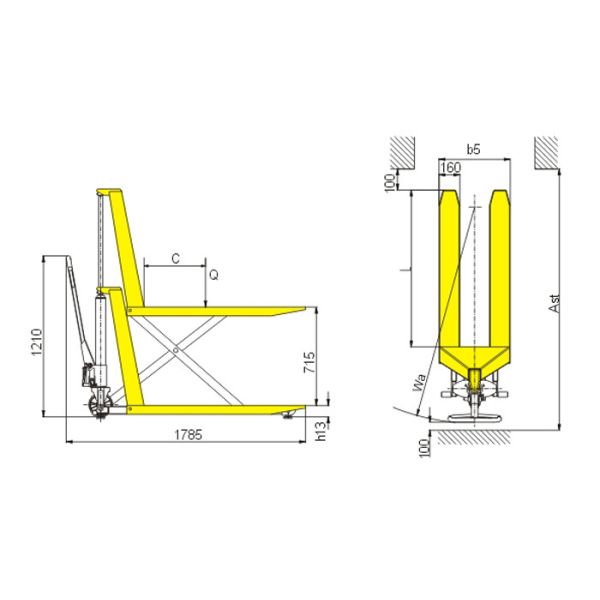

SPECIFICATIONS
Model		JF7
Capacity	kg	1000
Lowered fork height	mm	85
Steering wheel	mm	180*50
Fork wheel	mm	74*50
Fork length	mm	1220
Width overall forks	mm	550/685
Aisle width for pallets 1000*1200 crossways	mm	1985
Aisle width for pallets 800*1200 lengthways	mm	1985
Turning radius	mm	1670
Service weight	kg	104-115
